Micro Pulse System
- 微脉冲电源以在能集尘作用的DC电压加能荷电的微脉冲电压为用高电压除微尘的绿色设备
- 在之前除尘设备上只换荷电装置而可确保比之前的DC荷电装置有提高的除尘效率并可节省电力使用量
- 使用范围为燃气发电所,制铁所以及水泥厂等
-
二电源方式的微脉冲电源装置为独立控制DC电压, Pulse电压,和Pulse电流量，因此
- 抵减负效电晕而可确保安定的除尘效率
- 电力消费单相Si-TR对比可节省最大90%的水平
- 经较高的脉冲高峰电流并可提高荷电率而可提高除微尘效率
- 对于非阻抗值高尘可提供稳定地除尘效率而可确保原料购买的灵活性

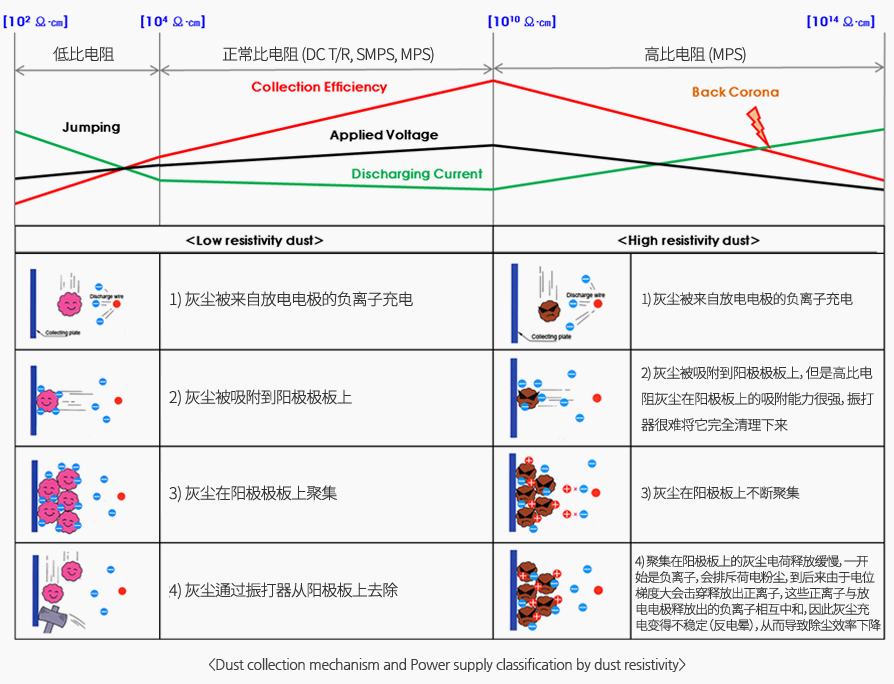

偏移速度可在高粉尘电阻率的情况下提高微脉冲供电。提高迁移速度与增加集尘板面积有相同的效果
There are 2 types of Micro Pulse System (Thyristor phase control and IGBT control).
| Item | Specifications | |
|---|---|---|
| Model | EP-MPS | HF-MPS |
| Power Source | 2 power source | 2 power source |
| Input Power | 3 Phase 480V/td> | 3 Phase 480V |
| Control | Thyristor phase control | IGBT control |
| Rectification | 3 phase full wave rectification | High frequency rectification |
| Cooling Method | Oil Natural Air Natural (ONAN) | Oil Forced Air Forced (OFAF) |
| Output | DC 35 kV, Pulse 65 kV | DC 50 kV, Pulse 70 kV |
| Pulse Width | 120 us | 120 us |
| Pulse Repetition Frequency | 100 Hz | 100 Hz |
| Control Cubicle | Necessayy | Not necessary |
| HV-Switch protection | Protection circuit for HV-Switch applied | Protection circuit for HV-Switch applied |
| Layout |
|
|
| Item | Specifications | Site Picture |
|---|---|---|
| Model | EP-MPS |
|
| Power Source | 2 Power Source | |
| Input Power | 3 Phase 400V | |
| Control | Thyristor Phase Control | |
| Rectification | 3 Phase Full Wave Rectification | |
| Cooling | Oil Natural Air Natural | |
| Output | DC 35 kV, Pulse 65 kV | |
| Pulse Width | 120 us | |
| Pulse Repetition Frequency | 200 Hz | |
| ESP Capacitance | 57nF / 135nF |
| Item | Specifications | Site Picture |
|---|---|---|
| Model | EP-MPS |
|
| Power Source | 2 Power Source | |
| Input Power | 3 Pahse 380V | |
| Control | Thyristor Phase Control | |
| Rectification | 3 Phase Full Wave Rectification | |
| Cooling | Oil Natural Air Natural (ONAN) | |
| Output | DC 35 kV, Pulse 65 kV | |
| Pulse Width | 120 us | |
| Pulse Repetition Frequency | 200 Hz | |
| ESP Capacitance | 113nF |
| Item | Specifications | Site Picture |
|---|---|---|
| Model | EP-MPS |
|
| Power Source | 2 Power Source | |
| Input Power | 3 Phase 480V | |
| Control | Thyristor Phase Control | |
| Rectification | 3 Phase Full Wave Rectification | |
| Cooling | Oil Natural Air Natural (ONAN) | |
| Output | DC 35 kV, Pulse 65 kV | |
| Pulse Width | 120 us | |
| Pulse Repetition Frequency | 100 Hz | |
| ESP Capacitance | 50nF |
| Item | Specifications | Site Picture |
|---|---|---|
| Model | HF-MPS |
|
| Power Source | 2 Power Source | |
| Input Power | 3 Phase 480V | |
| Control | IGBT Control | |
| Rectification | High Frequency Rectification | |
| Cooling | Oil Forced Air Forced (OFAF) | |
| Output | DC 50 kV, Pulse 70 kV | |
| Pulse Width | 120 us | |
| Pulse Repetition Frequency | 100 Hz | |
| ESP Capacitance | 177 nF |
